Shear beam load cells can be used for floor scales, platform scales, batching scales and other weighing systems. One end is fixed, the other end load. Shear beam load cell is easy to install and simple to use, it is a hot sale in the market. It is potted sealing or hermetically sealed, which provides good humidity resistance.
Alloy steel is using potted sealing, stainless steel ones can be sealed hermetically.
Self-centering, good interchangeability
Overload protection, nickle plated surface, moisture and oil resistance
Can be used together with a foot, head, washer and steel ball.

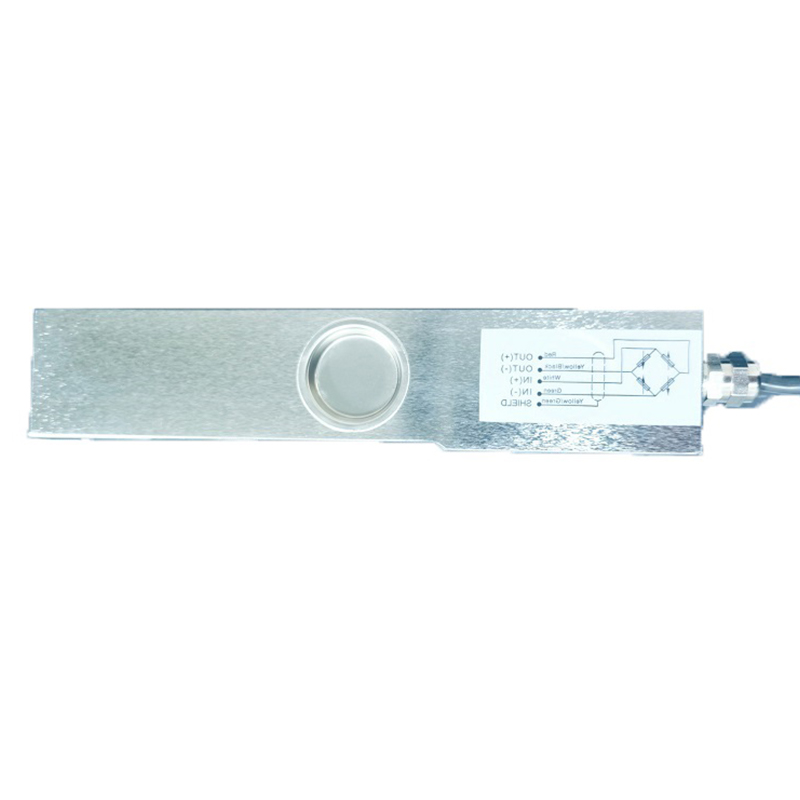

Shear beam load cell ZH-SB1
| Capacity | 0.05-10t | Material | Alloy steel/stainless steel |
| Rated Output(mV/V) | 2.0±0.005 | Nonlinearity | ±0.02%FS |
| 3.0±0.005 | |||
| Hysteresis | ±0.02%FS | Repeatability | ±0.01%FS |
| Creep(30 minutes) | ±0.02%FS | Zero balance | ±1.00%FS |
| Temperature effect on zero | ±0.02%F.S./10℃ | Temperature effect on output | ±0.02%F.S./10℃ |
| Input resistance（Ω） | 385±10 | Output resistance（Ω） | 350±5 |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5V-10V(DC) |
| Compensated temperature range | -10~+50℃ | Operating temperature range | -20~+60℃ |
| Safe overload | 120%FS | Breaking loading | 150%FS |
| Cable | Φ5.4 X 6M | Cable color code | Input: red+ black- |
| Or customized by request | Output: green+ white- |

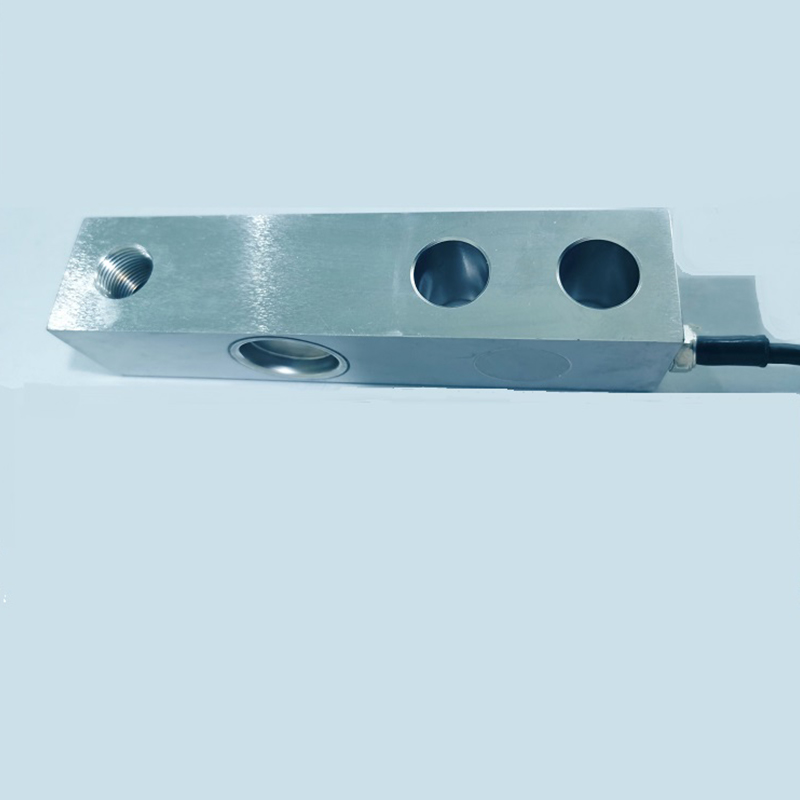

Shear beam load cell ZH-SB2
| Capacity | 0.5-20t | Material | Alloy steel/stainless steel |
| Rated Output(mV/V) | 2.0±0.005 | Nonlinearity | ±0.02%FS |
| Hysteresis | ±0.02%FS | Repeatability | ±0.01%FS |
| Creep(30 minutes) | ±0.02%FS | Zero balance | ±1.00%FS |
| Temperature effect on zero | ±0.02%F.S./10℃ | Temperature effect on output | ±0.02%F.S./10℃ |
| Input resistance（Ω） | 385±10 | Output resistance（Ω） | 350±5 |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5V-10V(DC) |
| Compensated temperature range | -10~+50℃ | Operating temperature range | -20~+60℃ |
| Safe overload | 120%FS | Breaking loading | 150%FS |
| Cable | Φ5.4 X 6M | Cable color code | Input: red+ black- |
| Or customized by request | Output: green+ white- |

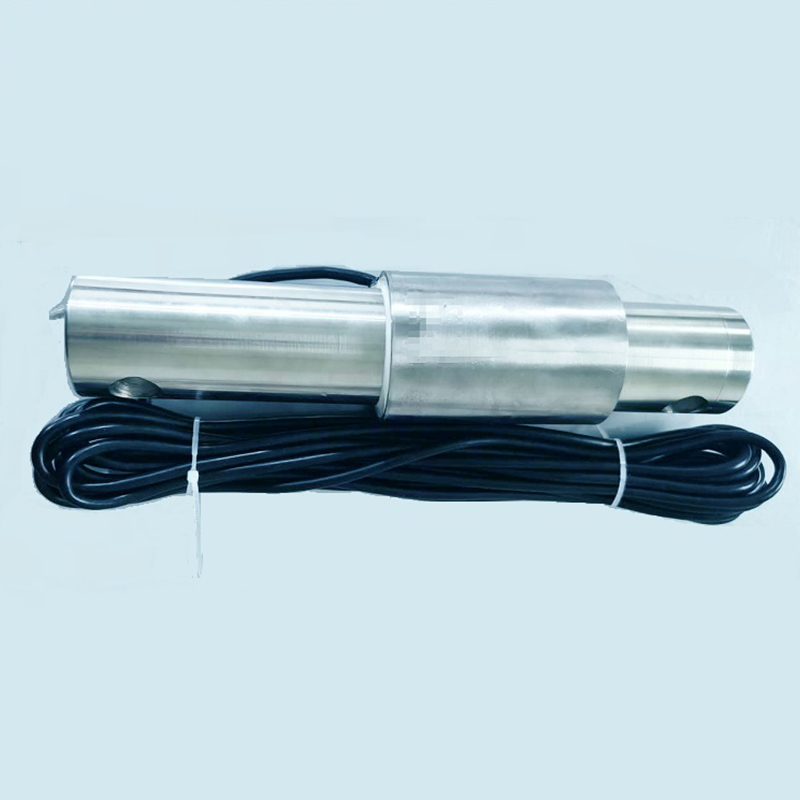

Shear beam load cell ZH-SB3
| Capacity | 5t | Material | Alloy steel |
| Rated Output(mV/V) | 1.0±0.05 | Nonlinearity | ±0.02%FS |
| Hysteresis | ±0.02%FS | Repeatability | ±0.01%FS |
| Creep(30 minutes) | ±0.02%FS | Zero balance | ±0.1%FS |
| Temperature effect on zero | 0.08%F.S./10℃ | Temperature effect on output | 0.025%F.S./10℃ |
| Input resistance（Ω） | 365±10 | Output resistance（Ω） | 350±5 |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 10V-15V(DC) |
| Compensated temperature range | -10~+40℃ | Operating temperature range | -35~+80℃ |
| Safe overload | 120%FS | Breaking loading | 150%FS |
| Cable | Φ5.4 X 6M | Cable color code | Input: red+ black- |
| Or customized by request | Output: green+ white- |
Mainly used for floor scale, platform scales,batching scales, hopper scales and other weighing systems.
 |
 |
 |
 |

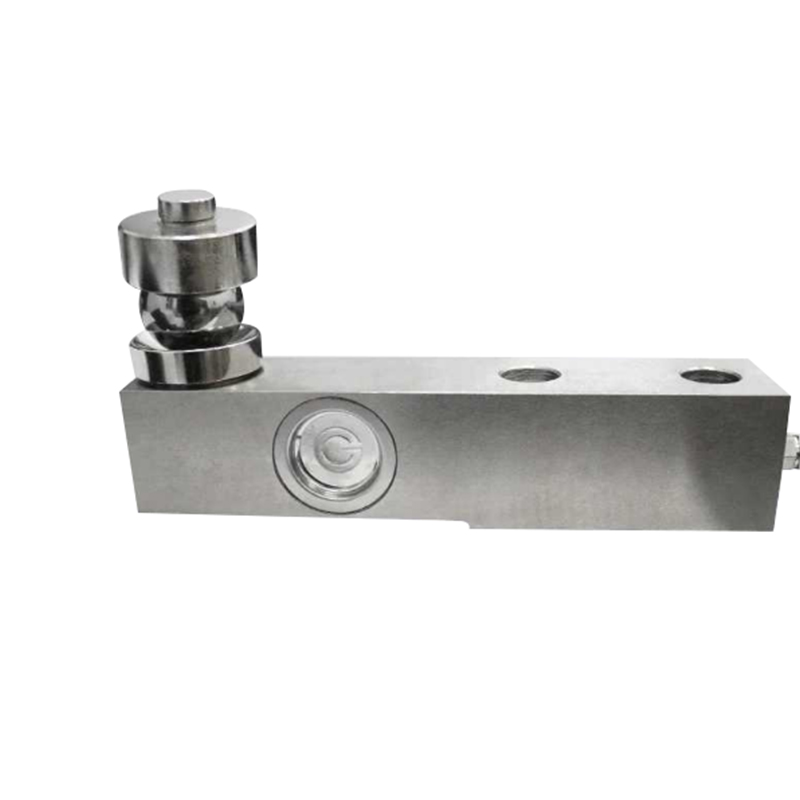

| FOOT | HEAD | WASHER | STEEL BALL |
